Valves

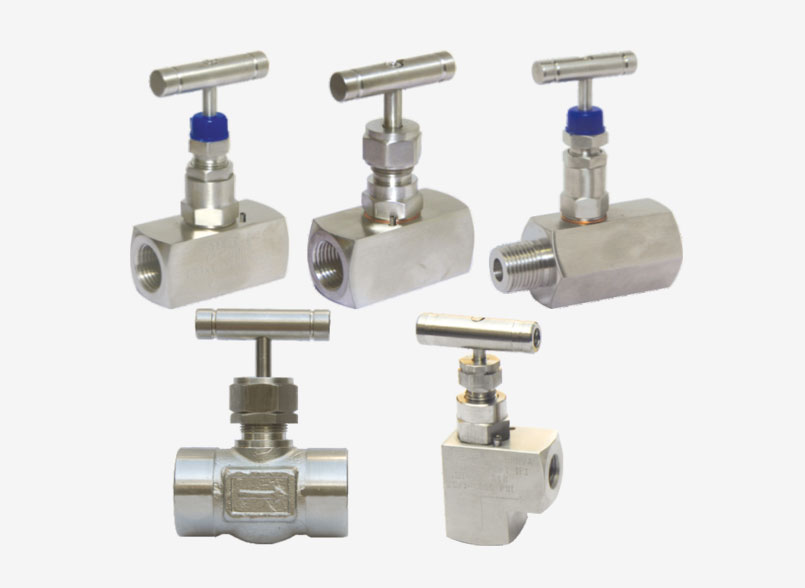

Product Name: Needle Valves
Description:
- Needle valves are Forged or Bar stock body construction straight or angle pattern with panel mounting option Union bonnet, Screwed bonnet, Integral bonnet.
- Our variety of end connection includes single or twin ferrule tube fittings male or female threaded NPT, BSP, ISO.
- Material Construction: S.S. 304, S.S. 316, Carbon Steel (CS), Brass and Monell.
- Testing: 100% test at 6000 PSI.
Size : Size : INCH 1/8" to 2½"
Download PDF
Click on Image for Bigger View
Product Name: Ball Valves
Description:
- Ball valve are Two way, Three way, Fourway, Five way and Three piece design, Two piece design.
- Floating ball design to ensure leak-proof shut off.
- Material Construction : S.S. 304, S.S. 316, Carbon Steel (CS), Brass and Monel.
Download PDF
Click on Image for Bigger View

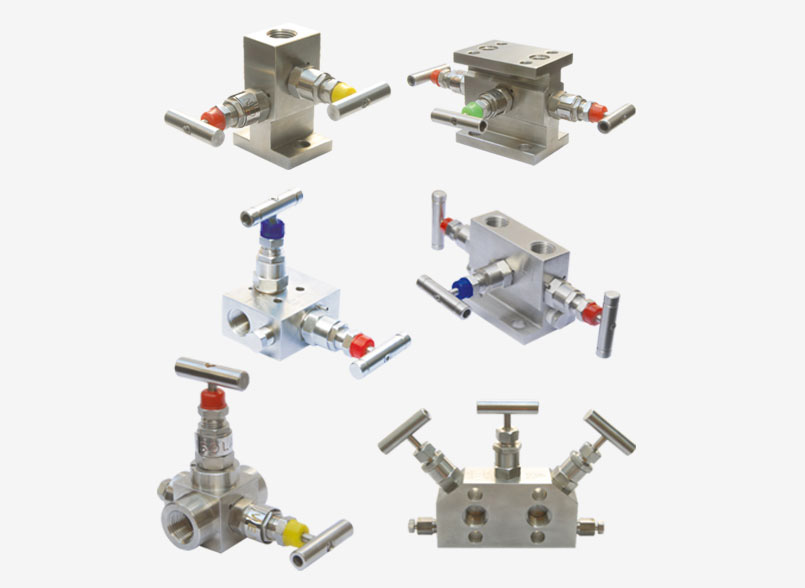

Product Name: Manifold Valves
Description:
- Manifolds Valves are Two way valve/Three way valve/Five way valve.
- These Manifold valves are remote mounting (pipe to pipe: 'R' type, Direct mounting), (pipe to flange: T'type), (flange to flange: "H'type),
- Pressure Rating: Up to 6000 PSI
- Material Construction: S.S. 304, S.S. 316, Carbon steel (CS) and wide range of optional material.
- Manifold valves consist½" NPT (F), Pipe to Pipe, Pipe to Flange or Flange to Flange connection on 54mm (2", 1/8") centers and 1/4" NPT (F) for drain.
- Testing: Each valve on every manifold is 100% tested with nitrogen at 2000 PSI for leakage at the.
Download PDF
Click on Image for Bigger View
